Low temperature plasma organic waste gas purification device

Furniture factory, electrostatic spraying, printing, chemical, petroleum, pharmaceutical, rubber, paint, tannery, tobacco, shoe factory, power plant;

Sulfur containing compounds, such as hydrogen sulfide, thiol, two methyl sulphur, thioether and heterocyclic compounds containing sulfur, etc.

Benzene series, such as styrene, benzene, toluene, xylene, etc.; halogen compounds, such as Freon, chloroform, carbon tetrachloride and dichloromethane;

Lipids, such as methyl acetate, ethyl acetate, methyl acrylate, ethyl acrylate, butyl acrylate; compounds containing nitrogen, such as ammonia, amine and nitro compounds and nitrogen-containing heterocyclic compounds; compounds of carbon, hydrogen or carbon, hydrogen and oxygen components (low alcohol, aldehyde, ester, etc.).

Under the influence of external electric field, discharge medium to produce a large number of articles to the electron bombardment pollutant molecules, ionization, dissociation and excitation, and then triggered a series of complex physical and chemical reaction, make complex macromolecules into simple small molecule material safety, or toxic and harmful substances into harmless non-toxic or low toxicity hazardous materials, which can degrade pollutants, making gas purification.

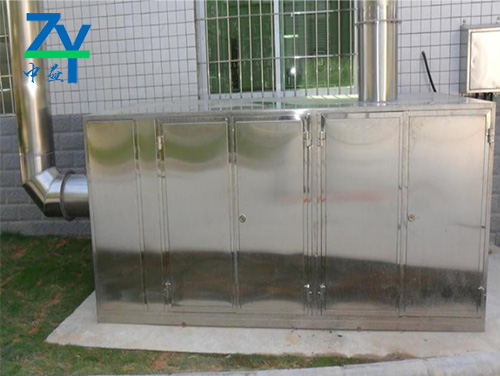

The system mainly consists of a shell, an electric field, a high voltage power supply and so on. The purification efficiency is high and the performance is stable. The operation cost is low and the power consumption is small. Low drag equipment less than 200Pa, the components are easy to disassemble and clean fast and time-saving, convenient maintenance, low cost. It is safe and reliable, the equipment adopts open type discharge form, and the disposal capacity of organic waste gas is 80%. High end technology plasma special high frequency power supply, strong stability, safety, reliability, high efficiency. No active carbon materials are not needed, and there is no saturated and desorption regenerated raw material, and no two pollution. It has long service life, easy installation and full automation in the operation process.
